Centrifugal Pumps – WR Models

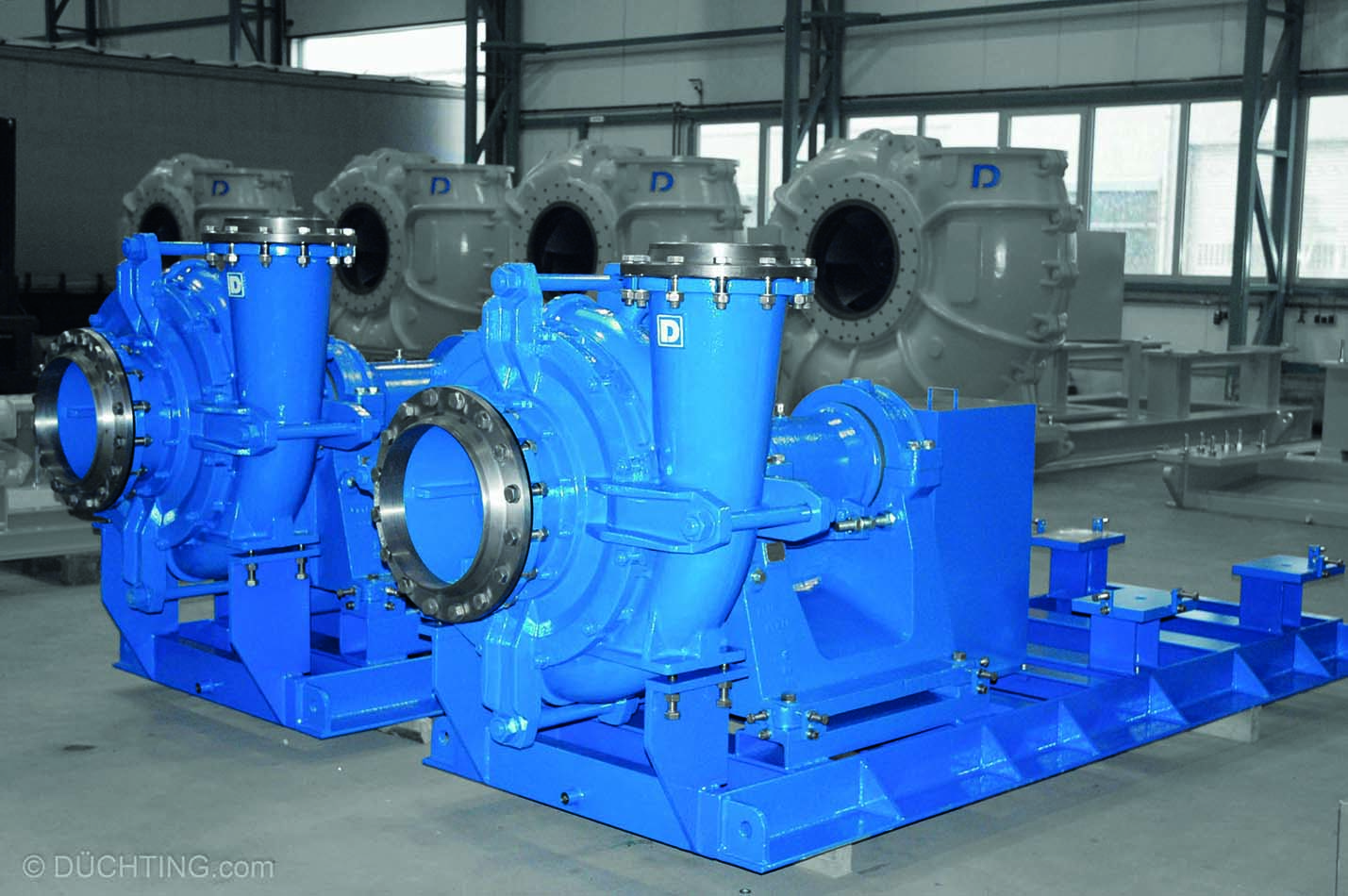

A horizontal single-stage pump that manages corrosive and abrasive liquids. Features include a top discharge flange, an axial suction flange, an impeller in open or closed design that is keyed to the shaft, roller bearings that are lubricated with oil, belt driven or driven design options, an adjustable impeller-volute casing gap, and a single DÜTEC mechanical seal offering shaft sealing.

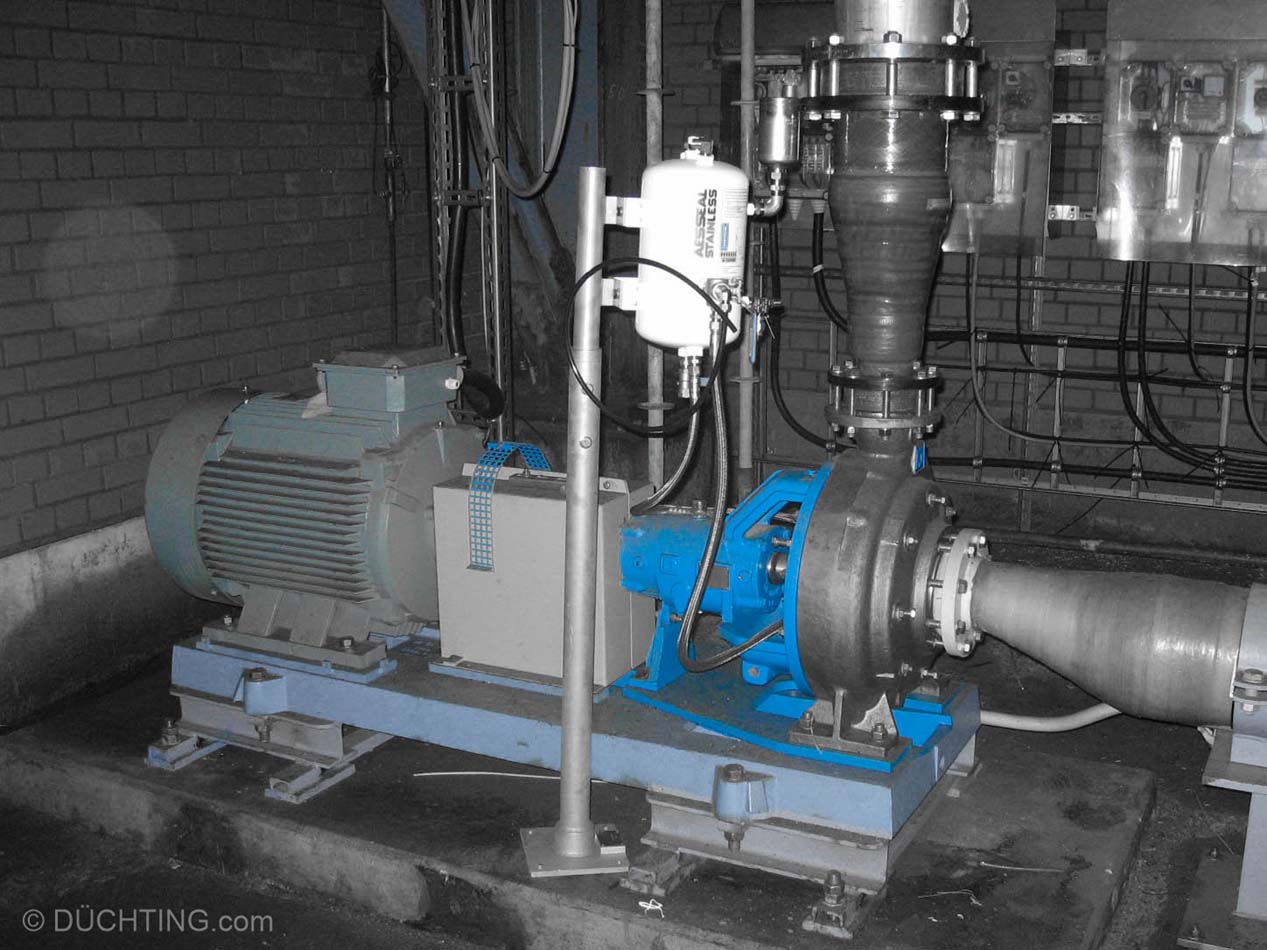

A single-stage pump ideal for material that is corrosive, abrasive, coarse, and fine. Features include an axial suction, a tangential discharge, an impeller with different shape options and that is adjustable axially, a mechanical seal or stuffing box option to provide sealing of the shaft, a belt driven or direct driven options, bearings that are lubricated with grease or oil, and further design versatility.

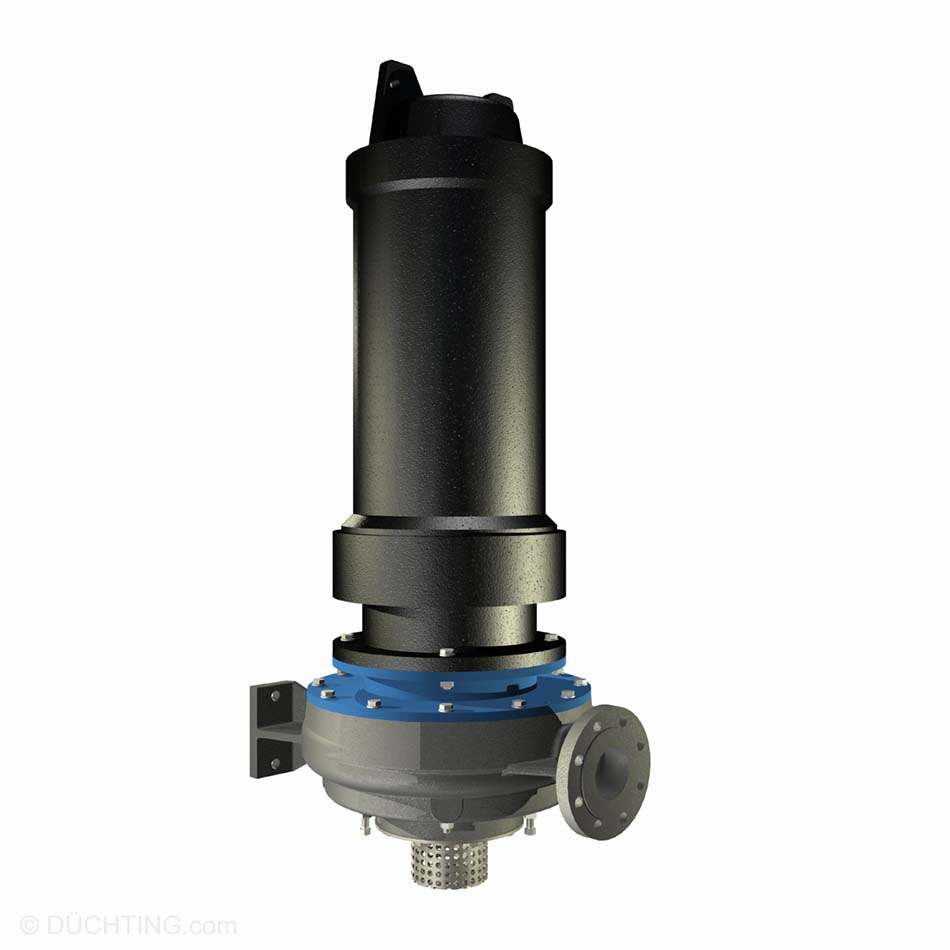

A single-stage vertical pump used for liquids that are corrosive and abrasive. Features include a vertical suction flange, a radial discharge flange, a closed impeller with an adjustable gap to the wear plate, a mechanical seal that is single acting, a three-phase motor that is submersible, an oil reservoir containing a moisture sensor, and metal versatility (cast iron, SUPER DUPLEX stainless steel).

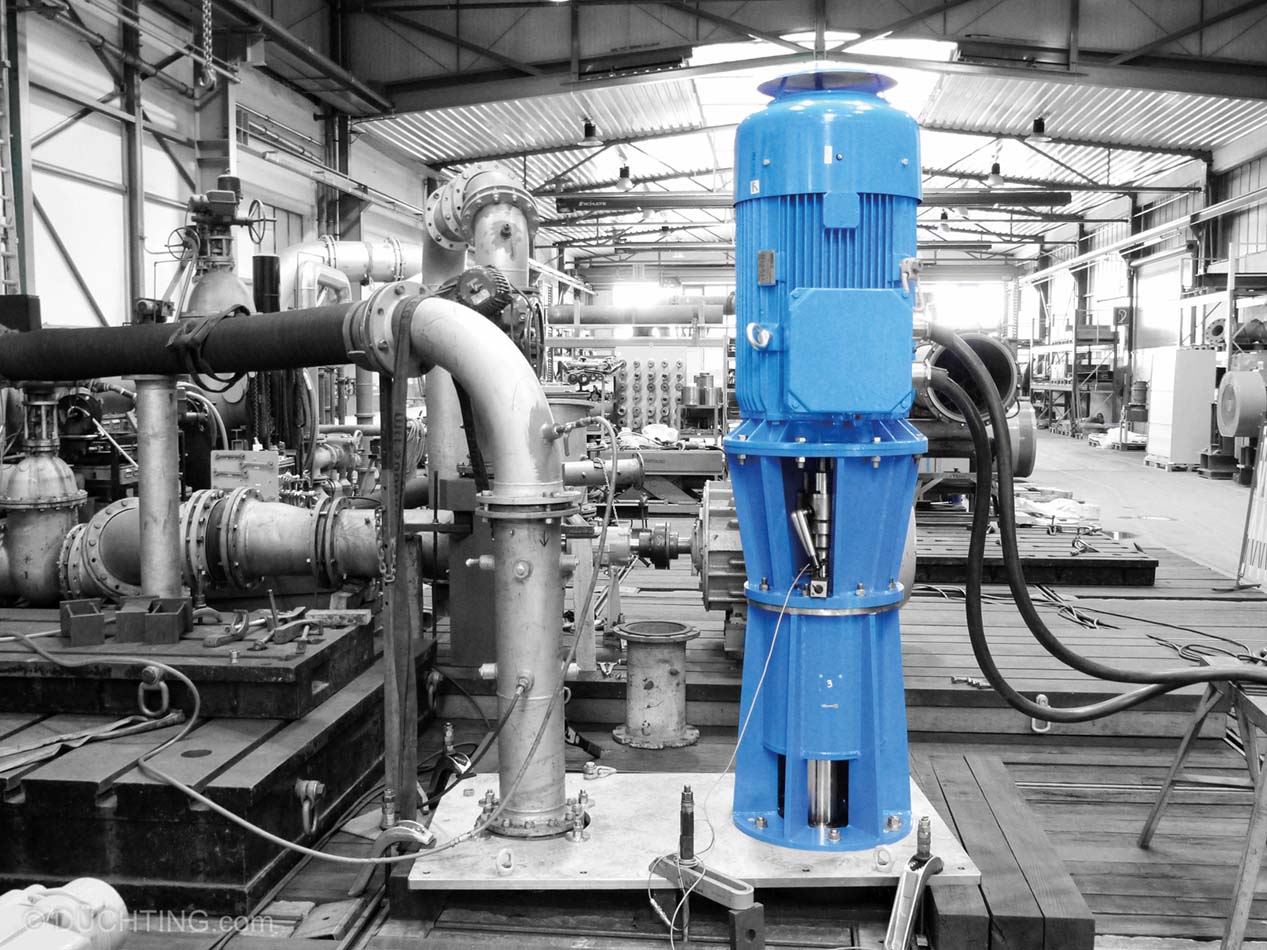

A single-stage vertical pump intended for corrosive, abrasive materials in a slurry setting. Features include a radial or tangential discharge flange, a fixed impeller (through fitting key) with open or closed options and an adjustable gap to the volute, no-maintenance bearings that are lubricated by grease, and a model that is semi-submerged and belt driven or direct.
